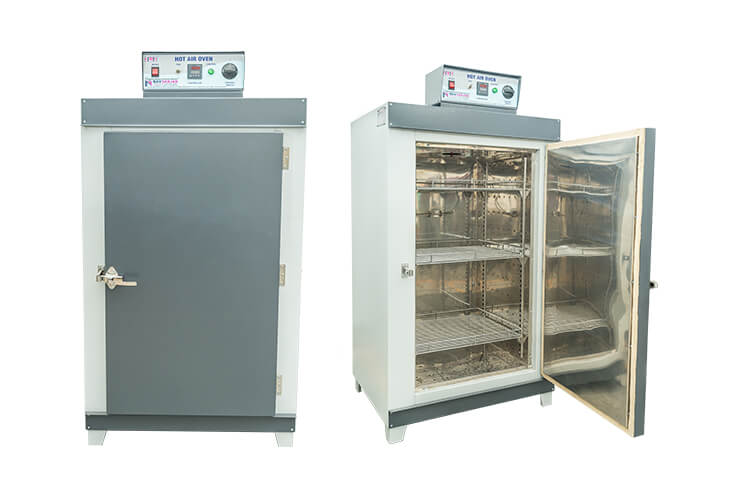

01 CONSTRUCTION

Double wall, Outer cabinet mild steel powder coated or stainless steel 304 and Inner Chamber Stainless Steel 304
The gap between the walls is filled with special grade Mineral wool for proper insulation to avoid heat loss and thereby saving energy.
The door is fully insulated with S.S lock, hinges.
Air Ventilation is provided to remove hot gases / fumes.
Supplied with SS shelves.

02 TECHNICAL SPECIFICATIONS

Temperature Range : 5°C above ambient to 250°C.
Accuracy/ Uniformity : ± 0.5°C / ± 1°C.
Control : Microprocessor based PID control Auto tune / PLC Based HMI Controller.
Resolution : 0.1°C.
Temperature sensor : PT - 100.
Heating : ISI Marked 'U' shaped tubular SS heater
Air circulation : Blower and flange type motor.
Power supply : 230V / 15A / 50 Hz

OPTIONAL FEATURES

Timer
PC/Printer Interface Unit

Model No.	Internal Size (mm) Width Depth Height	Liters	No.of Shelves
JDJ/HAO-01	350 x 350 x 350	40	1
JDJ/HAO-02	450 x 400 x 500	90	3
JDJ/HAO-03	450 x 450 x 610	120	3
JDJ/HAO-04	500 x 500 x 900	225	4
JDJ/HAO-05	600 x 600 x 900	320	4

* Customize size can be provided on user request
